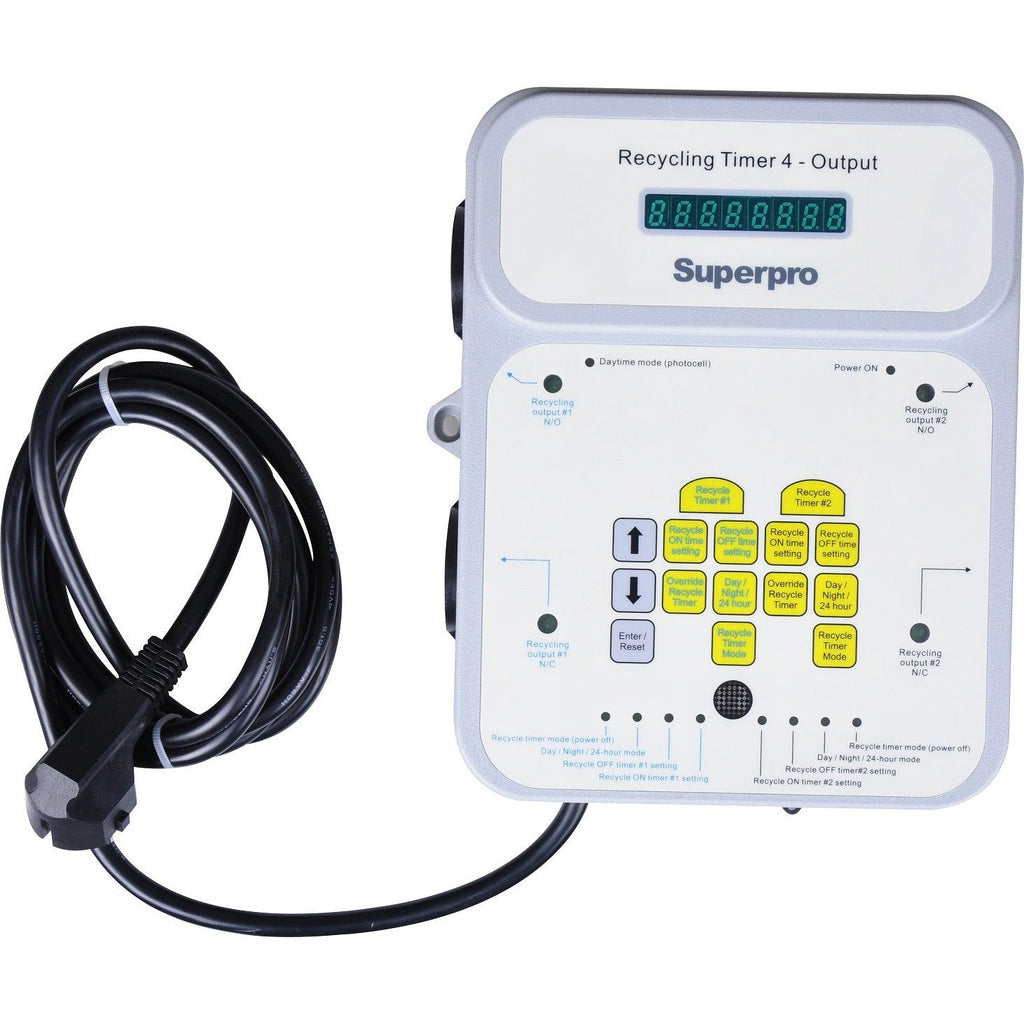

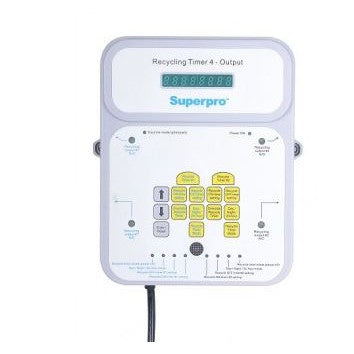

SuperPro 4-Output Recycling Timer MFRT-1

The Superpro MFRT-1 features two individual recycling timers, each with an On and Off setting, totaling four timer functions. The device includes four output plugs, each linked to one of the four timer settings. The recycling timers, Timer #1 and Timer #2, can be set to function during the day, night, or continuously over 24 hours. In operation, one of the two outputs will be energized as the timer counts down, providing a 'flip-flop' feature where one output is on while the other is off, ensuring that both N/O (normally open) and N/C (normally closed) outputs are never on simultaneously.

Note that Timer #1 has both a N/O and a N/C output. The N/O output is activated when the On timer is in countdown, and the N/C output is activated when the Off timer is in countdown.

 FAQ

Can the recycling timer operate 24 hours a day? Yes, it can. There are three modes available: "24 Hours" for continuous operation, "Day" for daytime operation only, and "Night" for nighttime operation only.

Will the recycling timer function during a power outage? Users have the option to either continue the countdown or pause the recycling timer during a power failure. Of course, the connected equipment will not be powered, but the program will not be lost, while timed functions will continue.

What should be done if the timer is not accurate? It may be necessary to replace the battery. The required lithium battery, CR1220 3 volt, typically lasts for an average of 5 years.

What steps should be taken if there's a power failure? First, reset the power switch (circuit breaker). If the issue persists, try reducing the number of devices connected.

How can I tell which function or setting is active? Activated functions or settings are indicated by a flashing green LED light next to the corresponding function.
